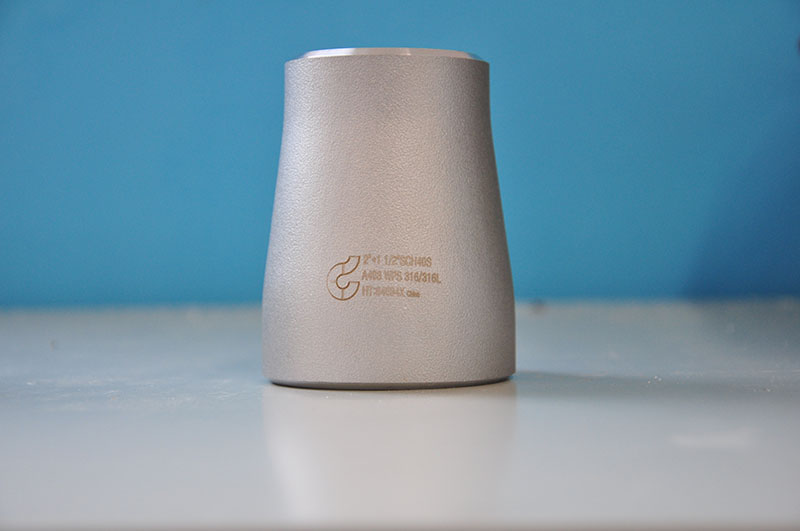

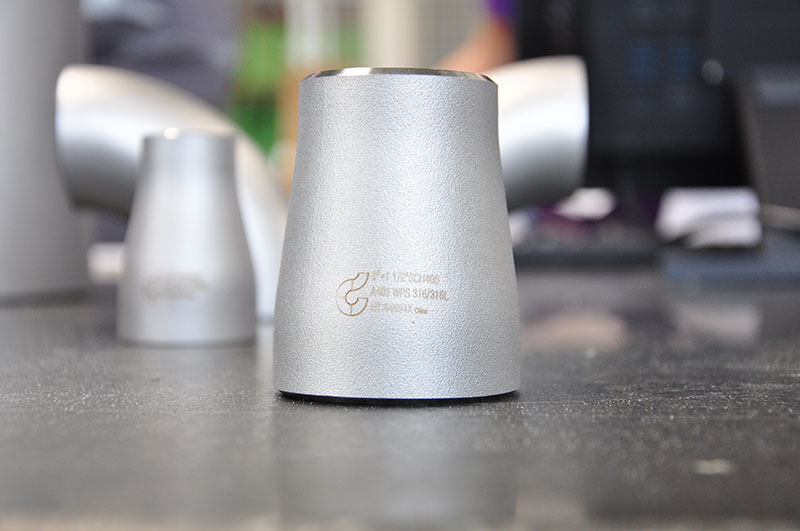

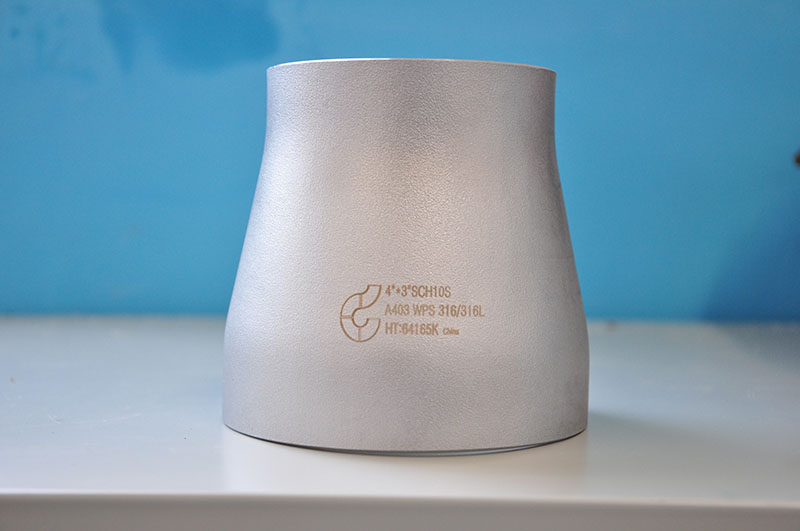

Con. Reducer


Reducer is one of the chemical pipe fittings, which is used to connect two types of pipes with different diameters. As far as shape is concerned, Reducer can be divided into concentric reducer and eccentric reducer.






Product Description:

Product Name: Con. Reducer
Specification: ASTM A403, ASME B16.9, ASME B39.19M, etc.

Dimension: 1/2-12
Materials: 304, 304L, 304H, 321, 316, 316L, 317, 317L, 316TI, 904L/Monel 400, Inconel 600, Inconel 625, Alloy 20, Incoloy 800H, Hastelloy C-276/S31803, S32750, S32760
Wall ThicknessSCH10S-SCH80S
Raw Material: Seamless Stainless Steel Pipe

Main Manufacturing Process: Cutting, Cold forming, PicklingPassivation, Heat Treatment, etc.
